FTGE Master Short Thunderbolt

Description

FTGE Short Master Thunderbolt

The Winkhaus FTGE master Thunderbolt is a modern construction method and advancing technolgies. This is very apparent when considering double doors, where for example the replacement of the original doors on a character laden cottage may require a sympathetic and bespoke timber solution whilst still considering the 21st century requirements of thermal performance and high security locking. The FGTE high security locking system for Timber, Aluminium and Composite doors. The FGTE is a product of flexibility, which amonst many benefits allows for the production of doors whcih are in excess of 3 metres tall.

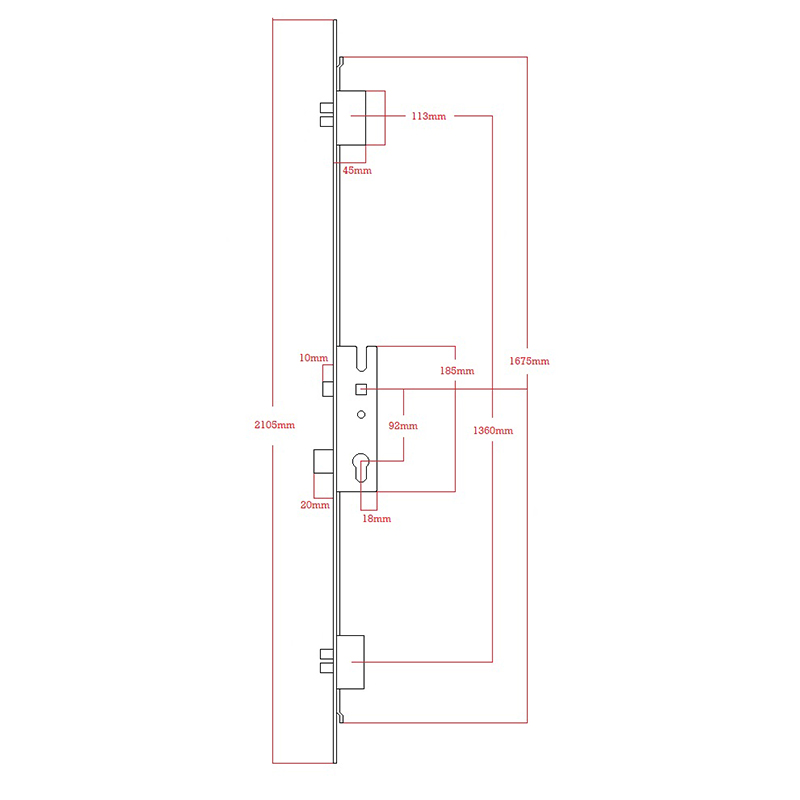

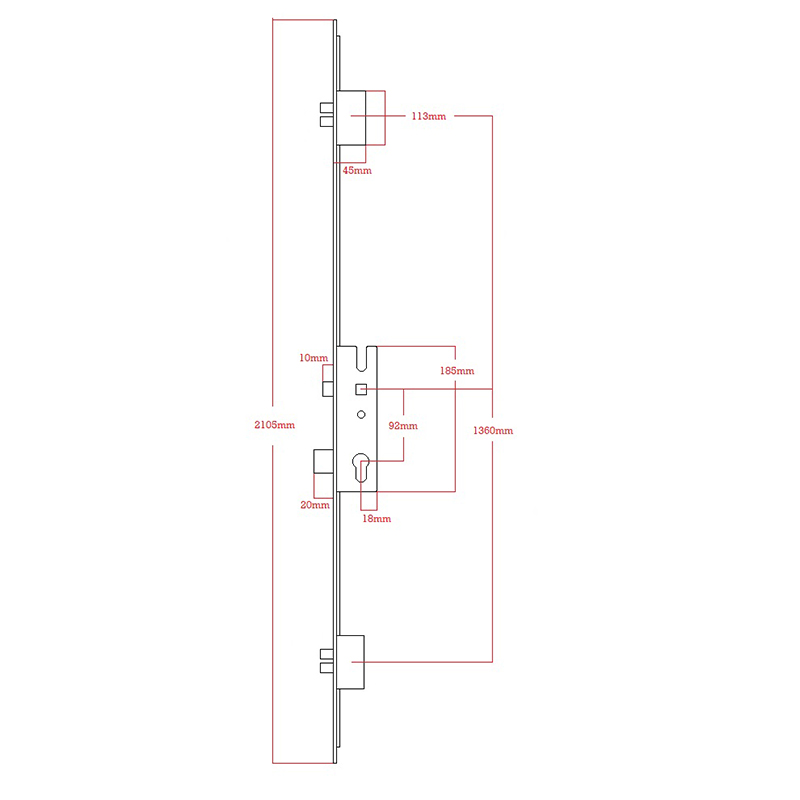

Overell Length: 2105mm

Backset: 45mm

Centres: 92mm

Case Width: Backset + 18mm

Faceplate: 20mm Square End

Spindle: Split Spindle 8mm

Distance Between Deadbolts: 1490mm

Distance Between Extension Bolts: ​1675mm

Features & Benefits

- Operation: Lift Lever or Split spindle nightlatch

- Latch Reversal: Push in the latch and a screw will appear in the back of the lockcase. Undo the screw to remove the latch. Reverse, reinsert the latch and replace the screw.

- Nightlatch Reversal: There is a small rectangular slot adjacent to side of the spindle hole contains a small black roll pin. Insert a flat bladed screwdriver and roll the pin to opposite side to reverse function.
